Product Description

Company :hengshui guangxing screen Co.,ltd provides value-added high precision Wedge wire screen products and services to global clients in various industries. The specifications of the Wedge wire pipe:
Detailed specifications of the products:
Material: stainless steel (304,316 etc.)
1.Profile wire:Width(mm): 1.0 1.5 according to your requirement.
Height(mm): 2.0, 2.5,according to your requirement
2.support rods:Width(mm): 2.0 according to your requirement
Height(mm): 3.0mm, 2.3mm, according to your requirement
3.Slot size: 0.015mm(15micron) 0.02,0.03,0.035,0.04,0.05,
0.06,0.075,0.08,0.1,0.2 also achieved upon request.
Open area up to 60%.
4.Length: max length 2.3 meters.
5.Diameter :from 25mm to 190 mm.

Moreover, we can also fit the srew joint, flange, lifting handle and other parts according to your requirement.
Advantage of the SS wire mesh screen cylinder for water treatment
1 A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2 A "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3 A uniform and efficient well development due to the continuous slot opening.
4 Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5 Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Payment Terms︰ TT

Packing︰ wooden

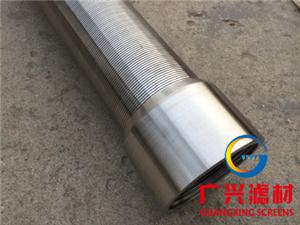

Product Image
